Sometimes the compressor is healthy and only its clutch is worn out. Route 66 Auto Repair in Upland replaces AC compressor clutches when the pumping side still tests good, which can save you the cost of a full compressor. When the compressor itself is also worn, we tell you, because a new clutch on a tired compressor is money spent twice. The written estimate explains the choice.
How does a compressor clutch wear out?
The clutch has three parts: the pulley with its bearing, the friction plate on the front, and the coil behind it. Every engagement wears the friction faces a little. As they wear, the air gap grows until the coil cannot pull the plate in firmly. The plate then slips, heats up and glazes. You may see a blue or scorched plate, smell hot metal, or hear chatter when the AC turns on.
Pulley bearings fail on their own, too, especially on engines that run hot. A bearing that growls with the AC off is a pulley problem, not a compressor problem, covered in detail on our compressor bearing repair page.
When is a clutch-only job the right call?

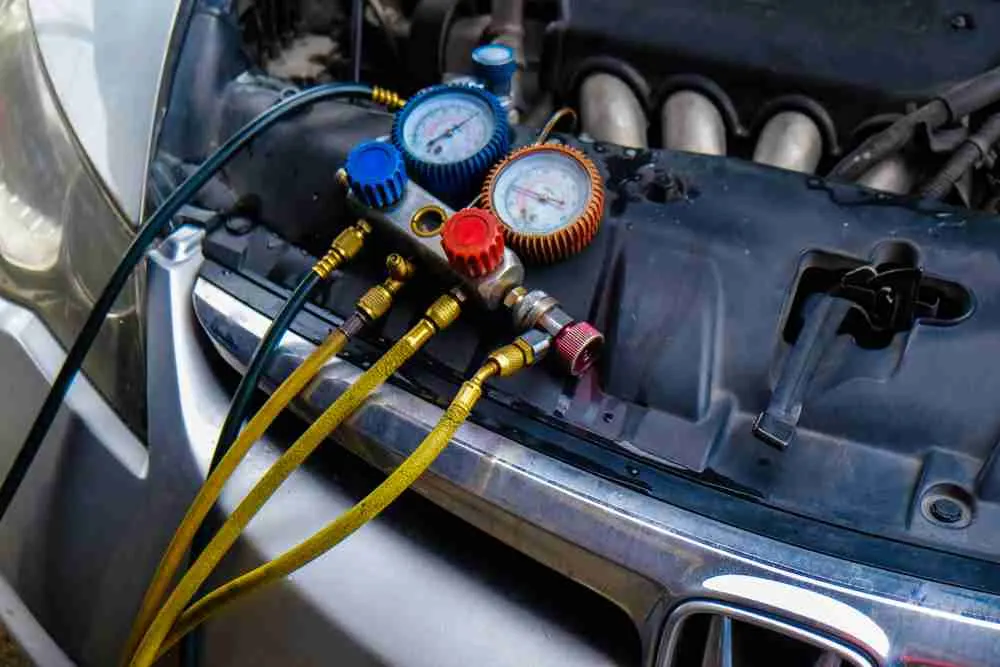

- Gauges show a strong pressure difference once the clutch is engaged by hand or with a jumper during testing
- The compressor shaft turns smoothly without catching
- No oil is leaking from the front shaft seal
- The recovered oil, if the system was opened, is clean
- A clutch kit is available and the compressor can be serviced on the car
Our clutch replacement process
Step 1: Prove the pump is good
We confirm pressure build and a smooth shaft before committing to a clutch.
Step 2: Remove the old clutch
The plate, pulley and coil come off with pullers, often without opening the refrigerant system.
Step 3: Install and set the gap
The new clutch is installed and the air gap is shimmed to spec.
Step 4: Check the belt and test
The drive belt and tensioner are inspected, and we run repeated on-off cycles to confirm engagement.
What's included in compressor clutch replacement
Included on the work order
- 01Compressor pumping test
- 02Clutch plate, pulley and coil kit
- 03Air gap shimming to spec
- 04Drive belt and tensioner inspection
- 05Engagement cycle test
- 06Vent temperature check after repair
How pricing and timing work
On some engines the compressor must be unbolted and moved for clutch access, which adds labor. On others, a complete compressor with a new clutch costs close to a clutch kit plus labor, and the estimate compares both. If the compressor has to be replaced, see AC compressor replacement. For clutches that simply will not engage, the electrical side is covered on AC clutch repair. Most clutch jobs finish in a day.
Frequently asked questions
Can I keep driving with a slipping clutch?
Leave the AC off until it is fixed. A slipping clutch overheats and can damage the pulley bearing and the compressor seal.
Does replacing the clutch require a recharge?
Often not, since the clutch is outside the sealed system. If the compressor must be removed from its lines for access, recovery and recharge are added to the estimate.
Why would you recommend a whole compressor instead?
If the compressor is weak, leaking at the seal, or the price gap is small, a complete unit is the better value. We show both options in writing.
